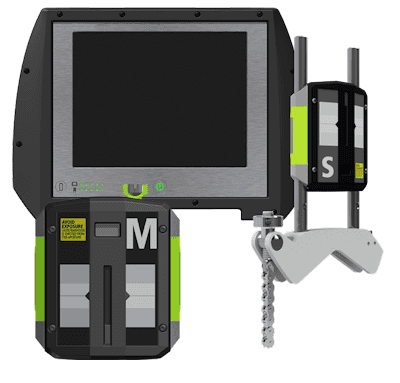

Fixturlaser NXA Laser Shaft Alignment Tool
Accurate shaft alignment is vital in maritime operations to ensure machinery efficiency and longevity. The Fixturlaser NXA Series offers advanced laser shaft alignment systems designed to meet the demanding requirements of marine engineers and maintenance professionals. This series includes models like the NXA Pro and NXA Ultimate, each equipped with features aimed at facilitating precise and user-friendly alignment processes.
** We strive for accuracy, but details may change, and errors are possible. Please verify specifications with the manufacturer or seller before purchasing. **
🏷️ Pricing: New | Used | Bulk
1️⃣ Technical Specifications
- Display Unit:
- Material: Brushed anodized aluminum frame with high-impact ABS plastic over-molded with TPE rubber.
- Operating Temperature: -10 to 50°C (14 to 122°F).
- Weight: Approximately 1.2 kg (2.6 lbs) with battery.
- Dimensions: 224 mm x 158 mm x 49 mm (8.8 in x 6.2 in x 1.9 in).
- Environmental Protection: IP65 (dust-tight and protected against water jets).
- Display: 6.5-inch (165 mm) color TFT-LCD backlit, sunlight-readable with wide-angle viewing technology.
- Battery Life: Up to 10 hours of continuous use; quick-charge function provides 5 hours of operating time after a 1-hour charge.
- Sensor Units:
- Material: Brushed anodized aluminum frame with high-impact ABS plastic over-molded with TPE rubber.
- Operating Temperature: -10 to 50°C (14 to 122°F).
- Weight: Approximately 192 g (6.8 oz) with battery.
- Dimensions: 92 mm x 77 mm x 33 mm (3.6 in x 3.0 in x 1.3 in).
- Environmental Protection: IP65 (dust-tight and protected against water jets).
- Laser: 650 nm class II diode laser with a power output of <1 mW.
- Measurement Distance: Up to 10 meters.
- Detector: Second-generation scientific-grade CCD with a length of 30 mm (1.2 in) and a resolution of 1 µm.
- Battery Life: Up to 15 hours of continuous use.
- Additional Features:
- Gyroscope: 6-axis MEMS inertial motion sensor with drift compensation and automatic field calibration.
- Wireless Communication: Class II Bluetooth transmitter with multi-drop capability.
2️⃣ Benefits
✅ Advanced Sensor Technology – The inclusion of gyroscopes and dual high-precision inclinometers enhances measurement accuracy and allows for precise alignment even in challenging conditions.
✅ User-Friendly Interface – The adaptive graphical user interface, combined with a durable touch screen, simplifies the alignment process, making it accessible even for users with limited experience.
✅ Durable Design – The robust construction and IP65 rating ensure the system can withstand harsh maritime environments, providing reliability and longevity.
✅ Efficient Power Management – Extended battery life and quick-charge capabilities minimize downtime, ensuring the system is ready for use when needed.
✅ Wireless Connectivity – Bluetooth communication enhances mobility around the worksite, allowing for more flexible and efficient alignment procedures.
3️⃣ Drawbacks & Limitations
⚠️ Higher Initial Investment – The advanced features and capabilities may come at a higher cost compared to basic alignment tools, which could be a consideration for budget-conscious operations.
⚠️ Complexity for Simple Tasks – For straightforward alignment needs, the extensive functionalities might be unnecessary, potentially complicating the process for users who require only basic features.
⚠️ Learning Curve – The sophisticated features may require additional training to utilize effectively, which could be a consideration for teams with varying levels of expertise.
4️⃣ Final Verdict
Final Score: 9.1/10
The Fixturlaser NXA Series offers advanced laser shaft alignment solutions tailored for the maritime industry. Its combination of cutting-edge sensor technology, user-friendly interface, and robust design makes it a valuable asset for ensuring precise machinery alignment. However, the higher initial investment and potential complexity for simple tasks should be considered when selecting the appropriate model for specific maritime applications.
