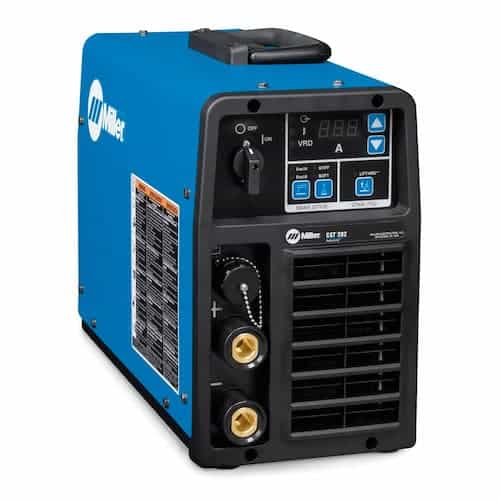

Miller CST Series Rugged Stick/TIG Welders
Where repairs often need to be performed in challenging environments such as ship hulls, decks, and confined engine rooms. The Miller CST™ Series is a reliable and portable Stick/TIG welding solution designed for the harsh conditions of shipboard operations. With its durable build, compact size, and ability to handle demanding jobs, the CST series is a strong contender for marine welders who need both performance and portability.
** We strive for accuracy, but details may change, and errors are possible. Please verify specifications with the manufacturer or seller before purchasing. **
🏷️ Pricing: New | Used | Bulk
1️⃣ Technical Specifications
General Features
- Processes: Stick (SMAW) and DC TIG (GTAW-DC)
- Output Range: Up to 280 amps, capable of handling Stick electrodes up to 3/16 inch and TIG welding for pipe and plate applications
- Input Power: Auto-Line™ Technology allows operation with various primary voltages from 208V to 575V, single or three-phase, without the need for manual linking
- Weight & Portability: Weighs only 34.6 pounds, making it highly portable for shipboard applications
- Dimensions: 8 inches (width) x 13.5 inches (height) x 18.5 inches (length)
Performance & Features
- Auto-Line™ Technology – Automatically adjusts to input voltage changes, ensuring stable operation even in fluctuating power environments, which is critical for ships using onboard generators.
- Adaptive Hot Start™ – Helps prevent electrode sticking by delivering a controlled burst of energy at the start of a weld, improving arc stability.
- Voltage Reducing Device (VRD) – Reduces open-circuit voltage when not welding, enhancing safety for operators in wet or confined shipboard environments.
- Universal Connector System – Compatible with both Tweco- and Dinse-style connectors, eliminating the need for additional adapters.
- Lift-Arc™ TIG Start – Allows for easy arc starts without using high-frequency initiation, making it safer to use near sensitive electronic systems onboard ships.
- IP23-Rated Enclosure – Built to withstand rough maritime conditions, including exposure to moisture, salt air, and vibrations.
2️⃣ Benefits
✅ High Portability – The lightweight (34.6 lbs) and compact design make it easy to transport across different ship locations, from cargo holds to deck repairs.
✅ Versatile Welding Capability – Handles Stick and DC TIG welding, covering a wide range of onboard repair and fabrication tasks.
✅ Durability for Harsh Environments – Designed for rugged conditions, the IP23-rated enclosure protects against dust, water, and mechanical damage.
✅ Multi-Voltage Compatibility – The Auto-Line™ Technology allows seamless use with fluctuating shipboard power sources, reducing downtime and the need for additional power converters.
✅ Ease of Use – The simple interface with digital meters and push-button controls allows quick setup and adjustments, minimizing training time for new operators.
✅ Energy Efficiency – Consumes less power than older transformer-based welding machines, making it more efficient for onboard use where power conservation is critical.
3️⃣ Drawbacks & Limitations
⚠️ No AC TIG Capability – The CST series is limited to DC TIG welding, making it unsuitable for welding aluminum or other materials that require AC TIG welding.
⚠️ Limited Features Compared to Full-Size Machines – While highly capable, it lacks advanced functions like pulse TIG, which might be beneficial for high-precision shipboard repairs.
⚠️ No Remote Contactor Control – While it supports remote amperage control, it does not allow remote contactor control, which could be a drawback for certain welding operations requiring hands-free start/stop control.
⚠️ Additional Accessories Needed – Users may need to purchase separate accessories (e.g., TIG torches, gas regulators, and foot pedals) depending on the specific application.
4️⃣ Final Verdict
Final Score: 9.0/10
The Miller CST™ Series is a powerful, portable, and durable Stick/TIG welder designed to handle the challenging conditions of shipboard maintenance and repairs. With its rugged construction, multi-voltage compatibility, and efficient performance, it is an excellent choice for marine welders who require reliability and ease of use. While it lacks AC TIG capability for aluminum welding, it remains one of the best DC Stick/TIG welders for maritime applications, offering great value for its size and weight.
